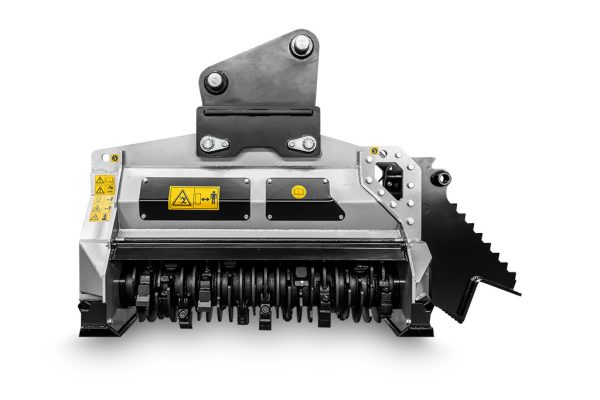

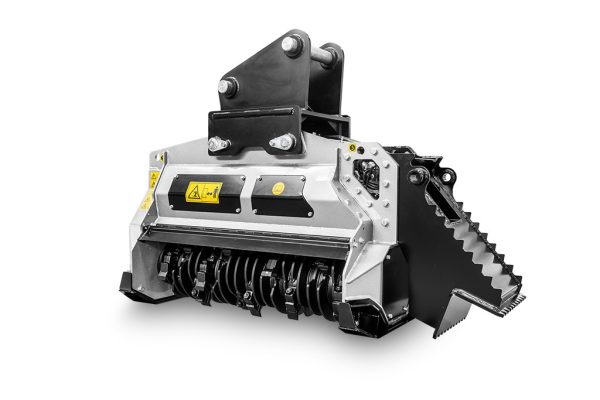

FAE BL3/EX/VT Forestry Excavator Mulcher
Features
1295-1370 KG kg Weight
20 cm Max Cut Diameter
180-350 Bar Recommended Working Pressure
14-20 t recommended base machine size
120-210 l/min recommended flow volume
The mulcher with Bite Limiter technology for large and midsize excavators.
The BL3/EX/VT forestry excavator mulcher for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm. The rotor features Bite Limiter technology. Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance. The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
The BL3/ EX/VT forestry excavator mulcher has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
- More Info
- FAE
- Service
- Supporting Information
Standard equipment:
- Enclosed/anti dust machine body
- Motor enclosed in the frame
- Bulkhead for hydraulic connections
- Spike Pro counter-blade
- Bite Limiter Rotor
- 110/60cc variable torque hydraulic piston motor (VT)
- 110cc variable torque hydraulic piston motor (SONIC)
- Timing belt transmission
- Flow control system valve
- Safety and anticavitation valve
- Diverter valve
- Sonic System (SONIC)
- Hydraulic front trap door
- Dedicated rear hood (deflector)
- Adjustable skids
Options: Customized setting hydraulic motor (VT), front fixed thumb bracked, hydraulic thumb, customized attachment bracket with pins, Sonic System, hydraulic front hood for excavator aux line (VT).
