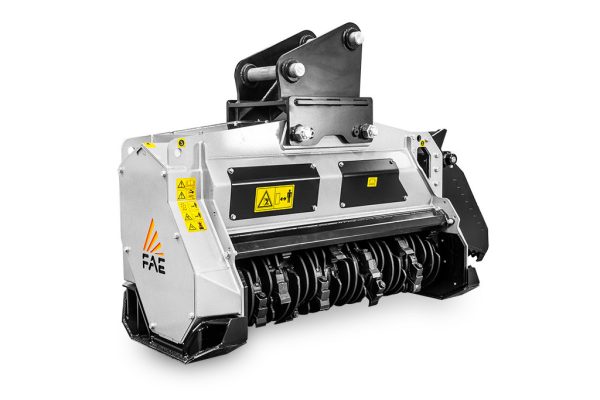

FAE BL4/EX/VT Forestry Excavator Mulcher

Share:

Features

1550-1650 kg Weight
30 cm Max Cut Diameter
220-350 Bar Recommended Working Pressure
18-25 t recommended base machine size
145-300 l/min recommended flow volume

The mulcher for large excavators, with Bite Limiter technology

The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12″ (30cm) in diameter and comes in two working widths: 53″/63″ (135cm/160cm).

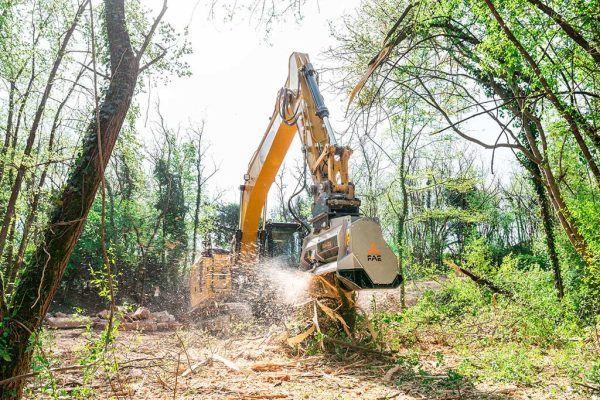

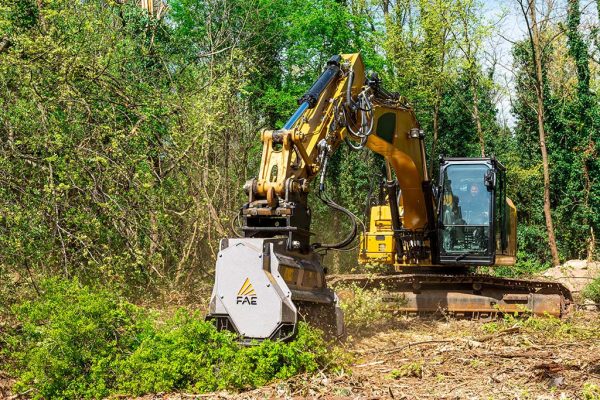

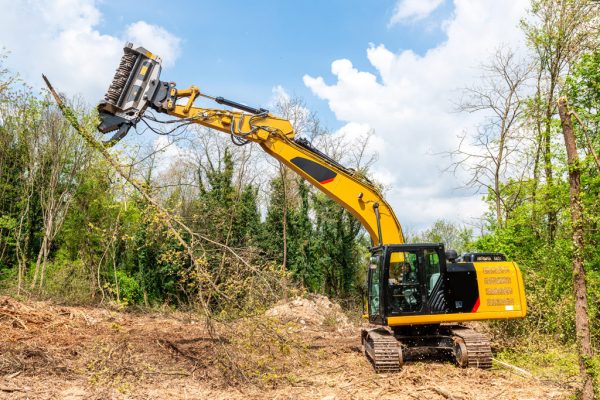

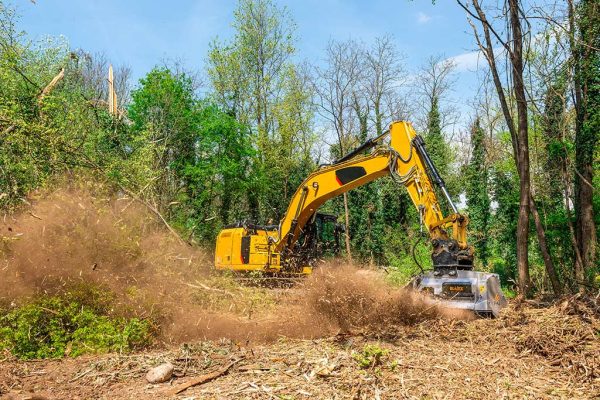

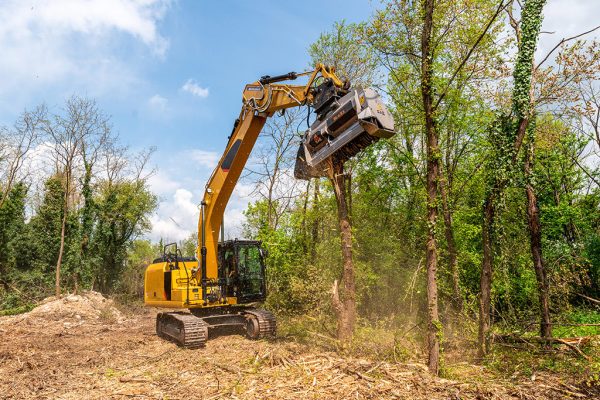

The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed.

The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.

The Poly Chain belt drive transmission ensures optimum power transfer and reliability.

The BL4/EX/VT has a Variable Torque (VT) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.

The sturdy steel frame is built to last. Optional Spike Pro bolted counter-blades produce very fine mulched material and make maintenance a snap.

The optional Sonic system ensures that the operating machine and the FAE mulcher are perfectly aligned by automatically calibrating and constantly regulating the mulcher’s hydraulic parameters for a significant increase in productivity.

Standard equipment:

  • Enclosed/anti dust machine body
  • Motor enclosed in the frame
  • Bulkhead for hydraulic connections
  • Spike Pro counter-blade
  • Bite Limiter Rotor
  • 110/60cc variable torque hydraulic piston motor (VT)
  • 110cc variable torque hydraulic piston motor (SONIC)
  • Timing belt transmission
  • Flow control system valve
  • Safety and anti-cavitation valve
  • Diverter valve
  • Sonic System (SONIC)
  • Hydraulic front trap door
  • Dedicated rear hood (deflector)
  • Adjustable skids

Options: Tooth and Motor options (ask for full details), Hydraulic front hood, Dedicated rear deflector, front fixed thumb bracket, hydraulic thumb, Interchangeable bolted on Spike PRO counter-blade, customized attachment bracket with pins, Sonic System.

FAE Group is a world leader in the design and construction of professional machinery for road construction, agricultural and forestry applications.
FAE MEANS QUALITY, RELIABILITY, AND INNOVATION.
For over 25 years they have been offering cutting edge, innovative solutions in design and technology and unique due to the quality of the materials and performance. The wide range of forestry mulchers & tillers are stocked by Jas P Wilson’s.
