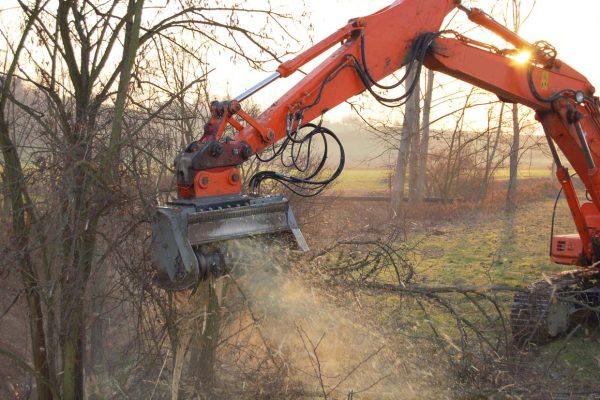

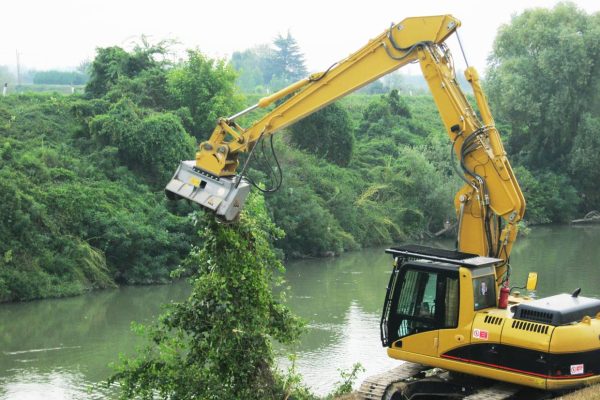

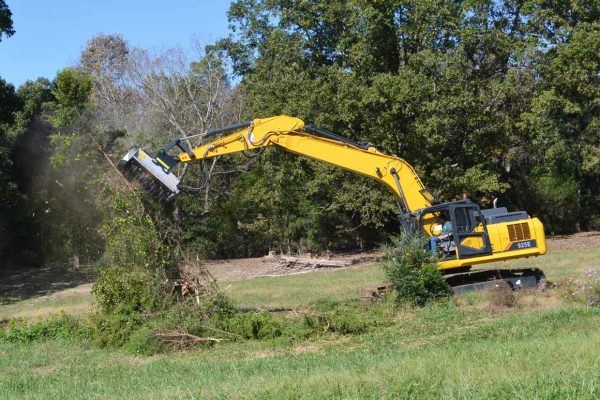

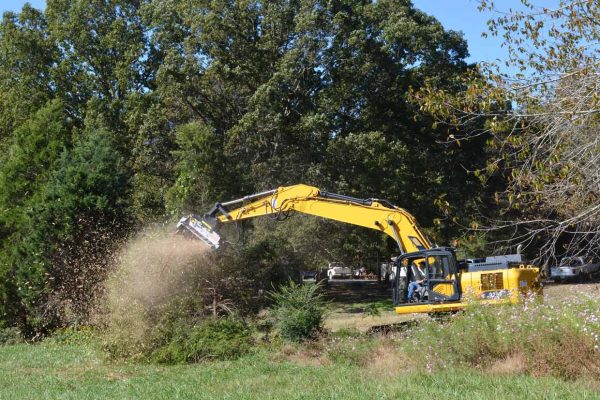

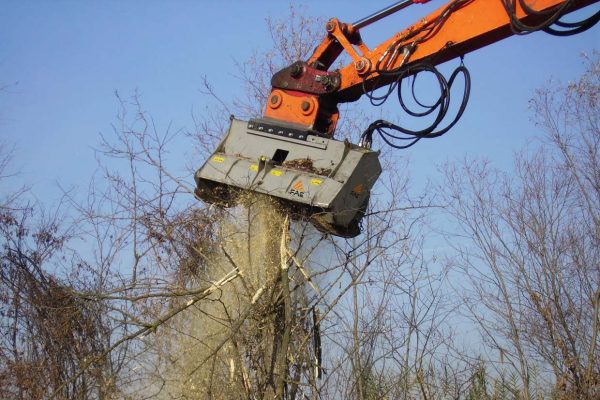

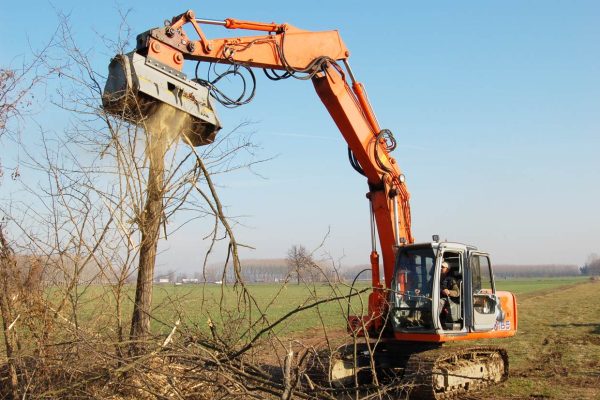

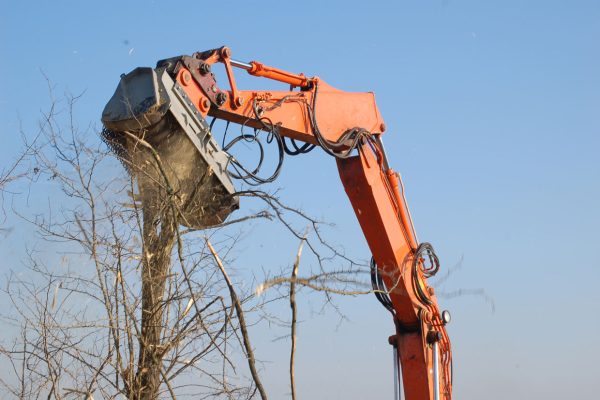

FAE UML/EX/VT Forestry Excavator Mulcher
Features
20 cm Max Cut Diameter
1090-1280 kg Weight
220-350 Bar recommended working pressure
14-20 t recommended base machine size
130-210 l/min recommended flow volume
3 Models. Working Widths: 1102/1342/1582 mm
Forestry mulcher with fixed tooth rotor for excavators.
Thanks to its size, heavy duty construction, reliability and performance, the UML/EX forestry excavator mulcher is one of FAE’s most popular attachments. The enclosed hydraulic door opening and closing system creates a completely enclosed frame that protects the internal components from dust and debris.
This forestry excavator mulcher has a maximum shredding diameter of 20 cm and is suitable for 14 – 20 t excavators.
- More Info
- FAE
- Service
- Supporting Information
The standard equipment includes:
- Enclosed/anti dust machine body
- Welded steel counter-blades
- Motor enclosed in the frame
- Bulkhead for hydraulic connections
- Screwed protection chains
- 110/60cc variable torque hydraulic piston motor (VT)
- 110cc variable torque hydraulic piston motor (SONIC)
- Timing belt transmission
- Flow control system valve
- Safety and anticavitation valve
- Diverter valve (SONIC)
- Sonic System (SONIC)
- Hydraulic rear hood
Fit this to a Forestry Guarded Harvadig Excavator
The HarvaDig Forestry Excavator system is an excavator based solution, converting standard excavators into forestry harvesting machines, whilst keeping their potential for other more typical plant tasks. FAE mulchers and stump grinders are two options, other implements include Harvesting heads (SP Heads or Keto Heads available), tree shears (JAK available), buckets, timber grapples (Botex available), cone splitters (Lasco available), post knockers, winches, brash rakes… the list is endless.
FAE Means Quality, Reliability and Innovation
FAE Group is a world leader in the design and construction of professional machinery for road construction, agricultural and forestry applications. For over 25 years they have been offering cutting edge, innovative solutions in design and technology and unique due to the quality of the materials and performance. The wide range of forestry mulchers & tillers are stocked by Jas P Wilson’s.
We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
