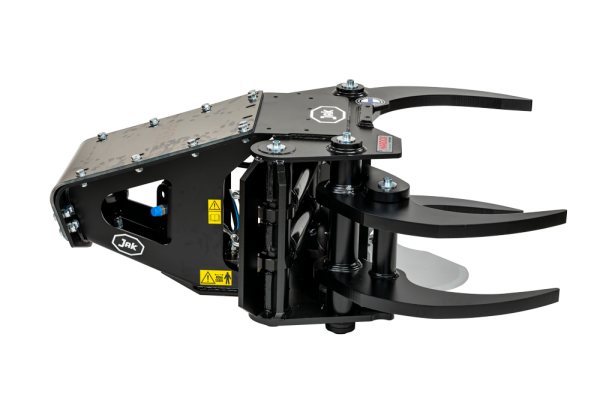

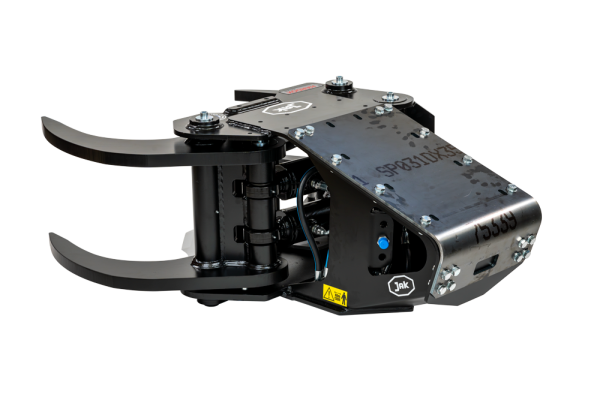

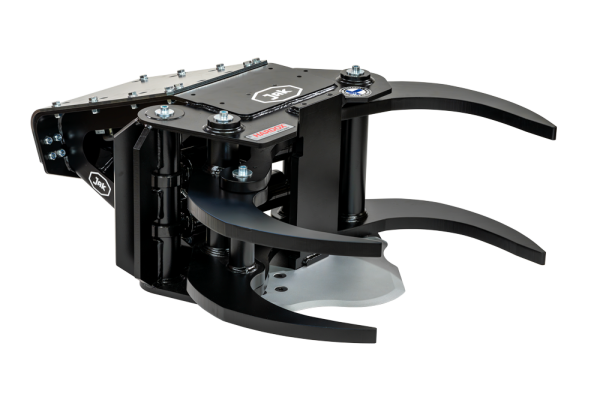

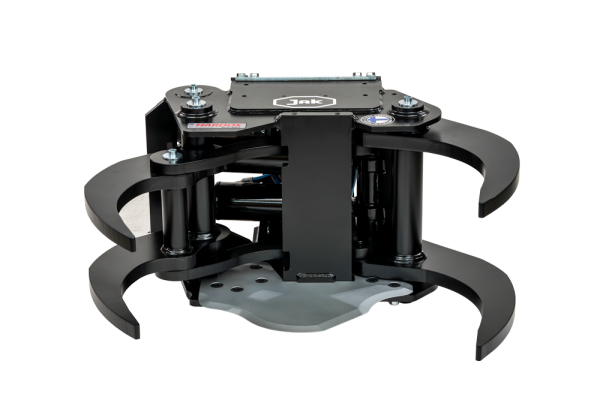

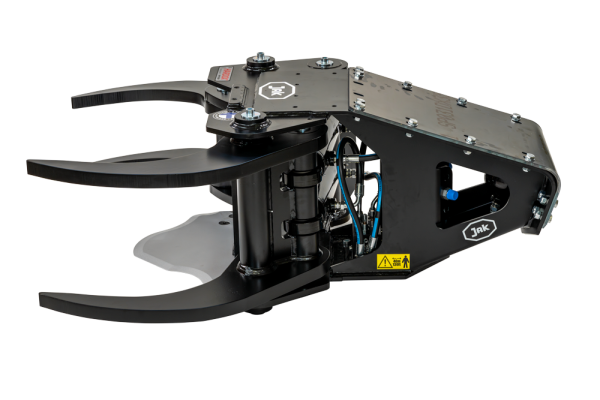

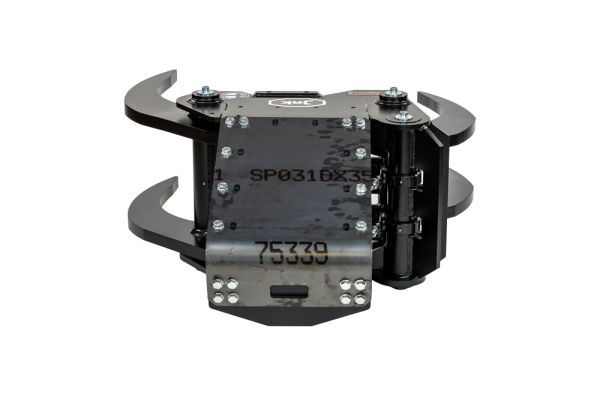

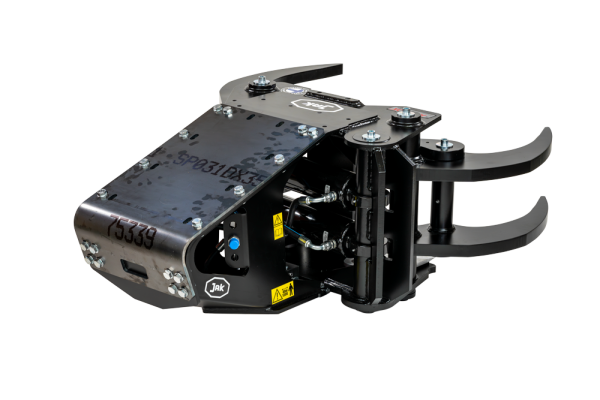

JAK 300 Excavator Tree Shear Grapple
This Excavator Tree Shear Grapple has a twin ram system, with a fixed Hardox blade capable of cutting 30cm (12″) diameter trees.
As a result, a JAK Excavator Tree Shear Grapple is a fast, efficient and cost effective tool for first thinnings, site management, embankment clearing and more. The grapple design makes it possible to cut a tree from its base, very near the ground. This machine benefits from replaceable blade, which can quickly unbolt if needed.
Weight: 550-590kg (depending on exact specification). Operating pressure 250-300 bar. Min. oil flow 90 l/min.
Speed up the job with an optional extra Collector
The Fixed 250 and 300 models are available with the optional extra “Collector”. This attachment adds 2 finger grabs at the top of the unit to bunch material together between cuts. The operator controls the collector separately to the shears to dictate when to activate this option to allow flexibility between cutting small diameter timber where bunching would be of great benefit, or choose not to engage them on max diameter timber for example. This option is a proven time saver on thinnings, and site clearance tasks.
Watch the collector attachment in action here:
Finnish Build Quality
These high quality machines are manufcatured by JAK-Metalli Oy in Finland. They specialise in the manufacture of attachments for forestry. They pride themselves on real world testing of their machines, whilst in development to ensure products which operators will find highly intuitive and productive. Each product is patented or otherwise protected. At the core of their business ethos is quality, and providing efficient products with excellent reliability and strong warranty back-up. JAK products are sold in over 30 countries worldwide, and Jas P Wilson’s are proud distributors for the UK & Ireland.
Fit this to a Forestry Guarded Harvadig Excavator
The HarvaDig Forestry Excavator system is an excavator based solution, converting standard excavators into forestry harvesting machines, whilst keeping their potential for other more typical plant tasks. JAK tree shears are one option, other implements include Harvesting heads (SP Heads or Keto Heads available), mulchers and stump grinders (FAE available), buckets, timber grapples (Botex available), cone splitters (Lasco available), post knockers, winches, brash rakes… the list is endless.
