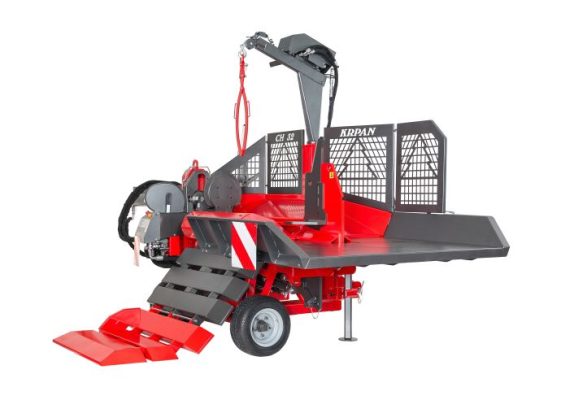

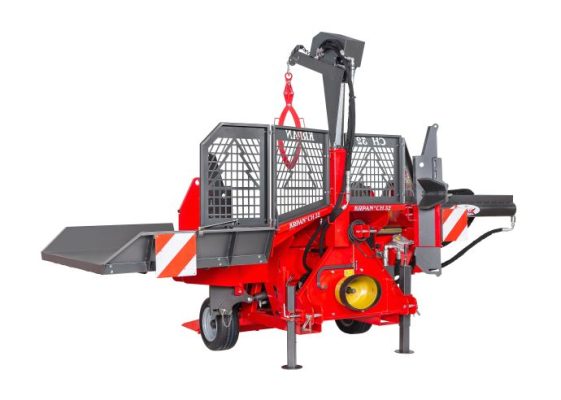

Krpan CH 32 K Log Splitter

Share:

Features

100 cm Max Cut Diameter
126 cm Log Length
Horizontal Log Splitter
31 t Splitting Force
48 hp Recommended Tractor Power

The KRPAN CH 32 K is a horizontal Firewood Log Splitter designed for the professional user and has a 31T splitting force. It splits logs of up to 126 cm long, with a 100 cm maximum cut diameter. The machine has a 2/4-way splitting knife as standard with the option for 6, or 8-way splitting knifes as required, as an optional extra.

Technical features

Splitting Force31 t
Splitting Length1260 mm
Piston Stroke1265 mm
Max. Log Diameter1000 mm
2 Automatic Splitting SpeedsStandard
Hydraulic Lifting and Lowering of the WedgeStandard
Piston Advance Speed (Stage 1/ Stage 2)14/28 cm/s
Piston Return Speed28 cm/s
Oil Quantity in Tank100 l
Required Tractor Capacity35 kW / 48 HP
3 Point Linkage CategoryII.
L x W x H – Working Position2500×4510×1815×2650 mm
L × W × H – Transport Position2000×2600×1815×2650 mm
Weigth1427 kg
Firewood Deposit Table (990 x 1925 mm)Standard
Firewood Deposit TableStandard
Oil CoolerStandard
2/4 -Way WedgeStandard
6 or 8 -Way WedgeOptional
Hydraulic Winch (750 kg) with Radio Remote PIC Minimal and ForcepsOptional
Hour meterStandard

Vitli KRPAN – Robust Build Quality

Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.

Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process.
KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.

Advanced Service Commitment

We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
Learn more about Service & Maintenance


Contact our product specialist Simon Munro directly

01556 612 233 simon@jaspwilson.co.uk
