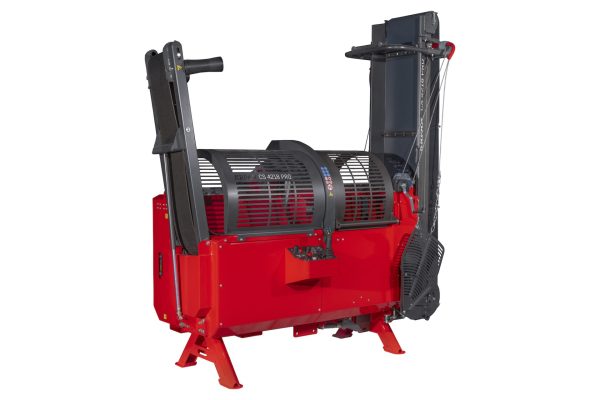

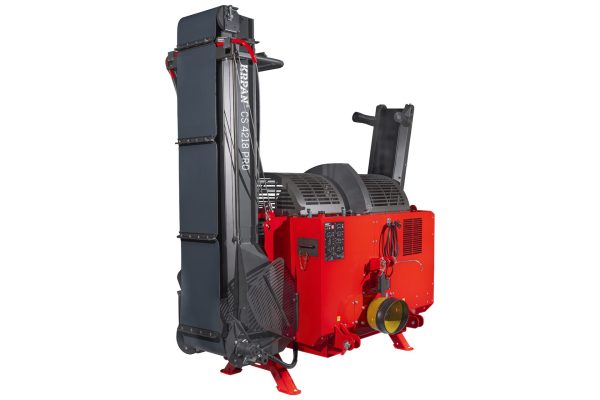

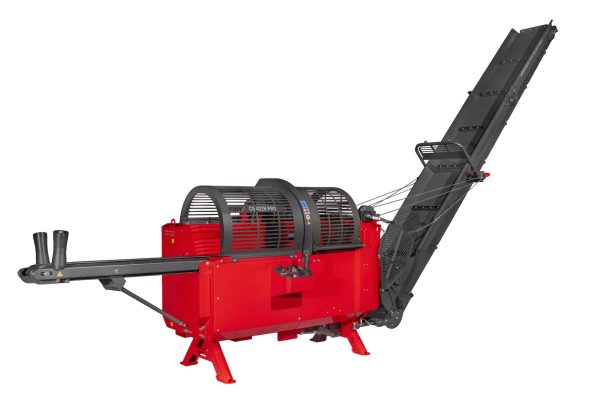

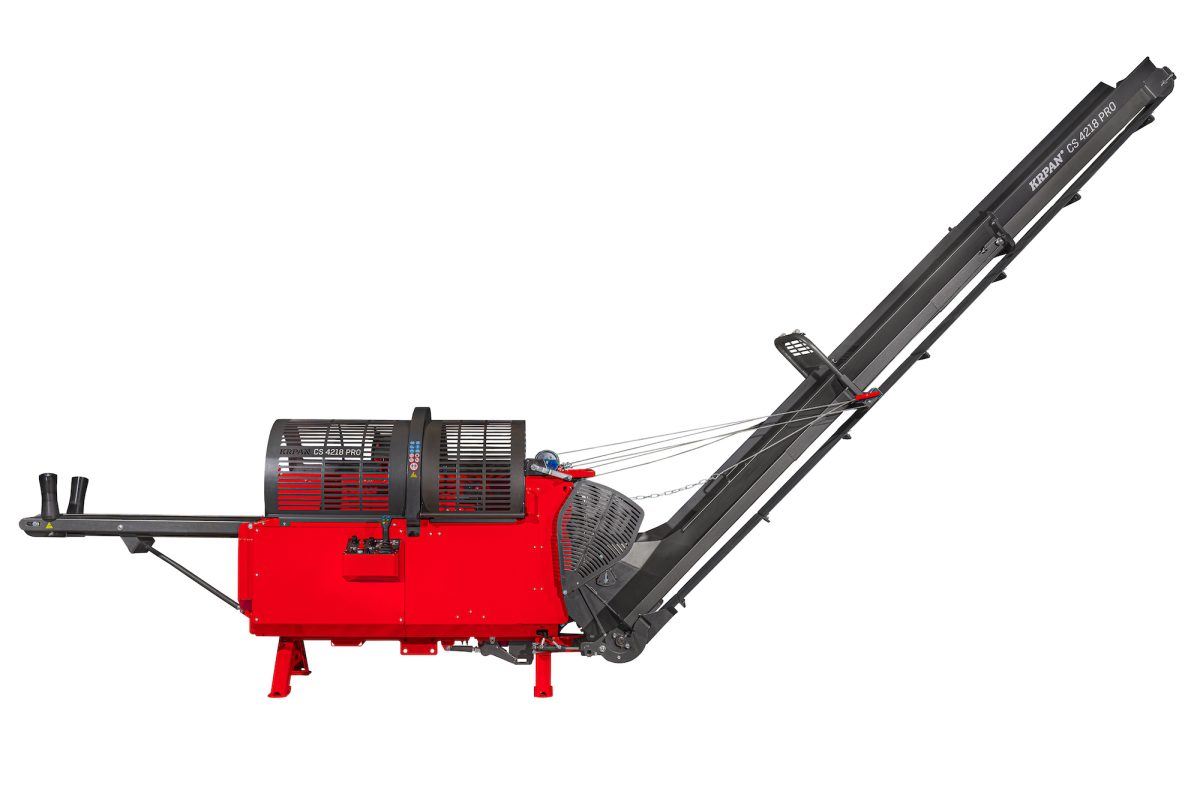

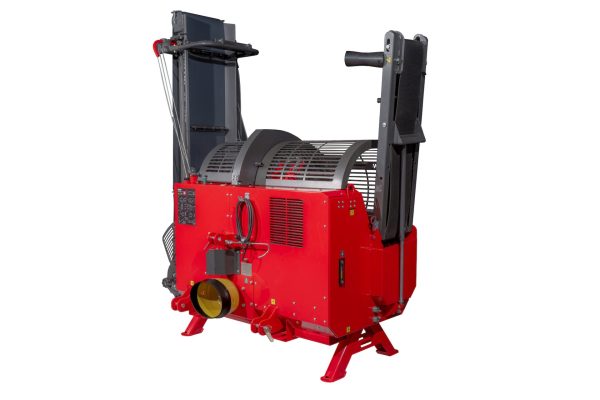

Krpan CS 4218 Pro Firewood Processor
Features
Chainsaw Sawing System
42 cm Max Cut Diameter
50 cm Log Length
18 t Splitting Force
Joystick Control Method
PTO / Electric Power Pack Power Options
50 hp Recommended Tractor Power
The KRPAN CS 4218 Pro Firewood Processor is a powerful machine designed for efficiently processing firewood. Designed for high productivity, the CS 4218 Pro enables users to process large quantities of firewood quickly. With joystick control of the main functions, this processor can be used with minimal manual effort to saw logs up to 42cm in diameter. This firewood processor has a 4-way splitting knife as standard with the option for 6, 8, or 12-way splitting knifes as required, as an optional extra. Once cut and split, the finished logs then exit the machine on a 5m slewing conveyor with continuous speed control.
- Technical Features
- Vitli Krpan
- Service
| Splitting Force | 18 t |
| Cut Log Length | 20-50 cm |
| Cut Log Diameter | 10-42 cm |
| Sawbar | Husqvarna |
| Chain | Husqvarna 85 |
| Control | Joystick |
| Oil Quantity in Tank | 100 l |
| Necessary Tractor Capacity | 37 kW / 50 HP |
| Discharge Conveyor – swinging (5 m) | S (hydraulic swinging) |
| Discharge Speed – with Continuous Speed Control | 0-1 m/s |
| Weight with Discharge Conveyor | 1570 kg |
| W × L × H – working position | 1420 × 7600 × 3900 mm |
| W × L × H – transport position | 1420 × 2450 × 2830 |
| PTO Drive Shaft Walterscheid W2300 SD 15 (L = 710 mm) | Standard |
| Wide angle PTO Drive Shaft Walterscheid WWZ 2480 | Optional |
| Splitting Wedge 4-Way | Standard |
| Splitting Wedge 6; 8; 12-Way | Optional |
| Wheels for easier transport | Optional |
| Sawdust Extractor Fan (hydraulic or electric) | Optional |
Robust Build Quality
Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.
Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process. KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.
We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
