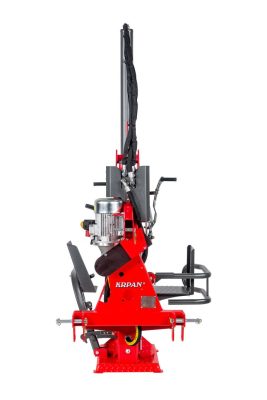

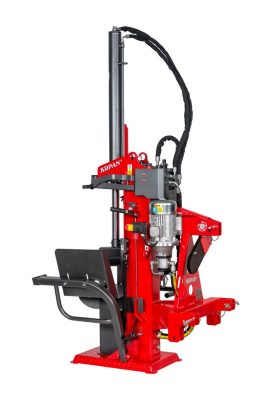

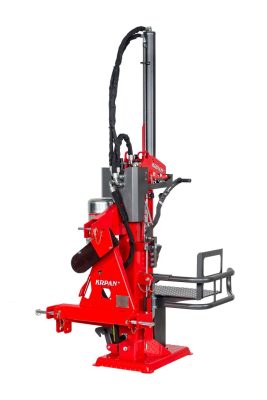

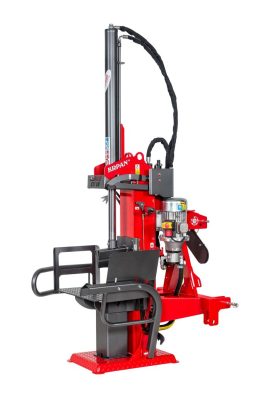

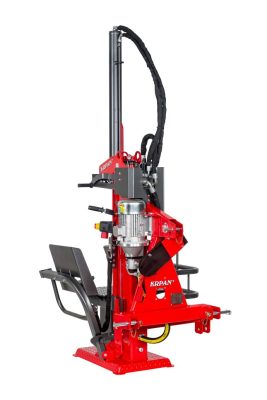

Krpan CV 18 E pro 400 V Log Splitter

Share:

Features

110 cm Log Length
Vertical Log Splitter
17 t Splitting Force
400v Electric Power Options
27 (1400) / 64 (540) min-1 l/min recommended flow volume

The KRPAN CV 18 E pro 400 V is a vertical firewood log splitter with 17T splitting force. With adjustable height for easier transportation and storage, and a mechanical log lifting device, this splitter can split logs with a height up to 110cm.

Technical features

DriveElectric motor
Drive Power5,5 kW / 7,5 HP
Splitting Force17 t
Piston Hub970 mm
Splitting Height550/1100 mm
Splitting Speed (S2– S1)-R*(s/1000mm)(4,9-9,8)-5,0 (3,1-6,3)-3,2
Oil Flow27 (1400) / 64 (540) min-1
Oil Quantity in Tank35 l
Recommended Tractor Power/
Dimensions W×L×H×(Ht)**805×1160×2840×(1850) mm
Weight418 kg
Table with extension and lifting device plateOptional
Cast-Iron PumpStandard
Winch (750kg)Optional

*S2- second gear; S1- first gear; R – reverse movement of the cylinder

** HT – transport height; transport height with winch is 2100 mm

Vitli KRPAN – Robust Build Quality

Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.

Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process.
KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.

Advanced Service Commitment

We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
Learn more about Service & Maintenance


Contact our product specialist Simon Munro directly

01556 612 233 simon@jaspwilson.co.uk
