Home » New Products » Krpan CV 22 EK Pro 400 V Log Splitter

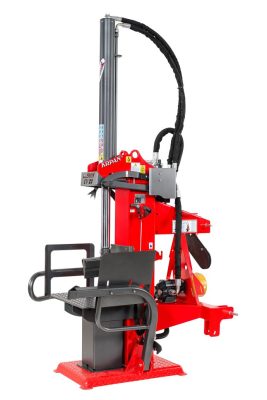

Krpan CV 22 EK Pro 400 V Log Splitter

Share:

Features

110 cm Log Length
Vertical Log Splitter
21 t Splitting Force
PTO / Electric motor Power Options
37 hp Recommended Tractor Power

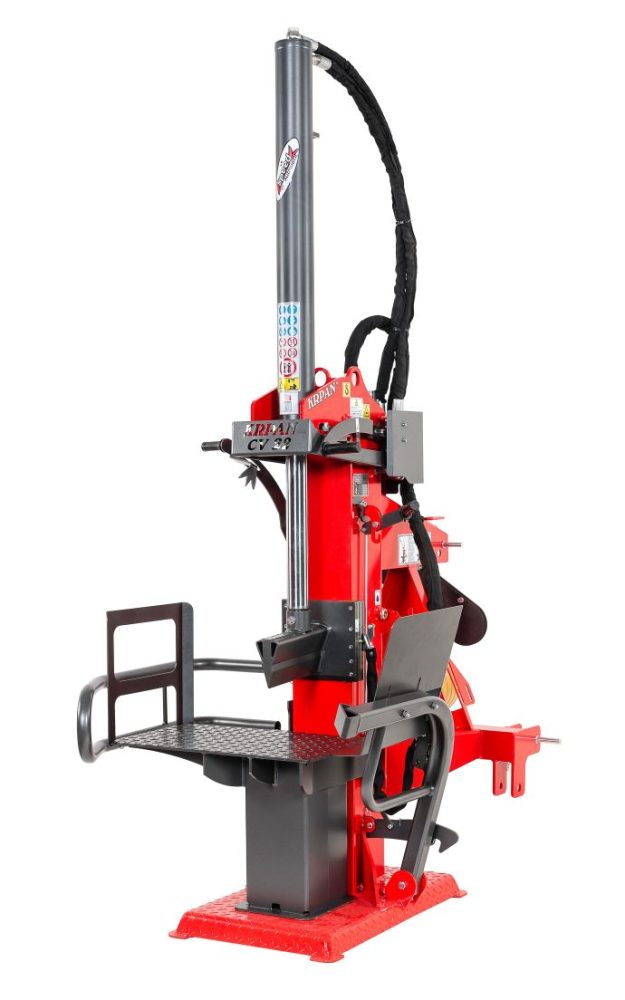

The KRPAN CV 22 EK pro 400 V is a vertical firewood log splitter with 21T splitting force. With adjustable height for easier transportation and storage, and a mechanical log lifting device, this splitter can split logs with a height up to 110cm.

Technical features

DriveP.T.O. shaft / Electric motor
Drive Power6,6 kW / 9 HP
Splitting Force21 t
Piston Hub970 mm
Splitting Height550/1100 mm
Splitting Speed (S2– S1)-R*(s/1000mm)(5,6-11,1)-5,6 / (3,6-7,2)-3,6
Oil Flow30 (1400) / 73 (540) min-1
Oil Quantity in Tank40 l
Recommended Tractor Power27 kW / 37 HP
Dimensions W×L×H×(Ht)**805×1260×2850×(1850) mm
Weight499 kg
Table with extension and lifting device plateOptional
Cast-Iron PumpStandard
Winch (750kg)Optional

*S2- second gear; S1- first gear; R – reverse movement of the cylinder

** HT – transport height; transport height with winch is 2100 mm

Vitli KRPAN – Robust Build Quality

Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.

Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process.
KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.
