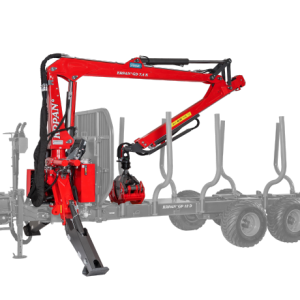

Krpan GD 7,4 K Forestry Crane

Share:

Supporting Information



Features

Technical features

Reach max. / with Grab open7,4/8,0 m
Lifting Torque net63 kNm
Lifting Torque gross80 kNm
Lifting Capacity at 4 m with Grab1860 kg
Lifting Capacity at max. Reach850 kg
Weight1516 kg *
Slew Torque22 kNm
Slewing Angle380 °
System Pressure230 bar
Oil Quantity in Tank100 l
Slew Cylinders4
Telescopic Stages1
Support Legs (A or “flap down”) by choice“flap down”
Crane Rotating Gear in Oil BathStandard
Self Sufficient Hydraulic System with PumpStandard
3 Point LinkageOptional
Control with Mechanical JoysticksOptional
Cross Lever Control with el. ON/OFF Functions/
Prop.-hydraulic (low pressure) Joystick controlStandard
Control with Proportional Electrical JoysticksOptional
High Seat ControlOptional
Radio Remote ControlOptional **
Control Lever ProtectionStandard
Double Cast-Iron Pump (tandem) with Double Circuit ControlOptional ***
Piston Pump/
Single Flow Piston Pump with MultiplierOptional
Double Flow Piston Pump with Double Circuit ControlOptional
LS Tractor System without its Own Hydraulic SystemOptional
Oil CoolerStandard
Rotator 30 kN (optional with flange)/
Rotator 45 kN (optional with flange)Standard
Rotator 55 kN (optional with flange)Optional
Flange Rotator 45 kN / 55 kNOptional
Grab GR 120 with Flange/
Grab GR 130Standard
Grab GR 150Optional
Profi Grab GR 20 / GR 24 / GR 24 BIO / GR 30 or GR 38Optional
Swing Damper (single / double)Optional
Operational LED LightsOptional
Operating hours counter – pressureStandard
Hydraulic Winch 1.8 tOptional
Log HolderOptional

*   Weight without Support Legs, Oil, Grab and Rotator

**  with Proportional Electrical Joysticks

*** Double Cast-Iron Pump (tandem) with double circuit control is not possible with upper hitch.


Contact our product specialist Ian Brown directly

01556 612 233 ian.brown@jaspwilson.co.uk
