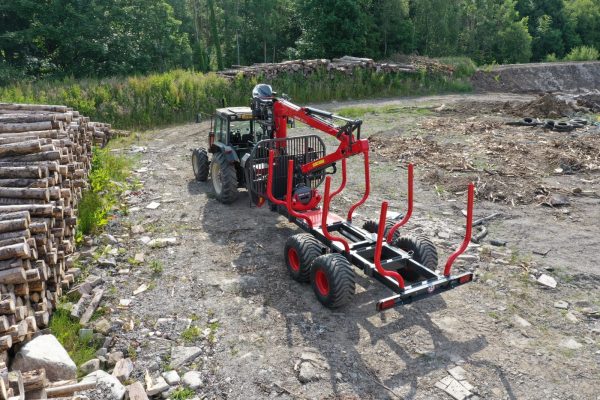

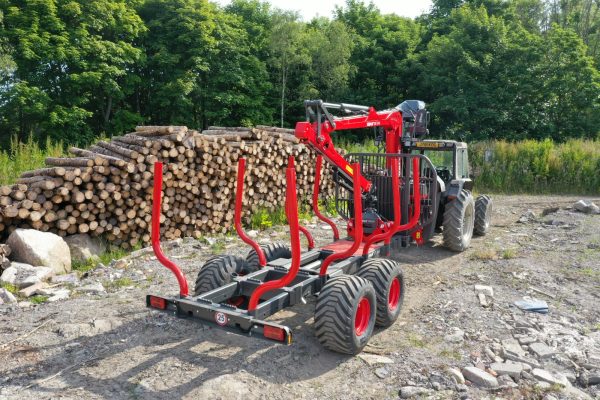

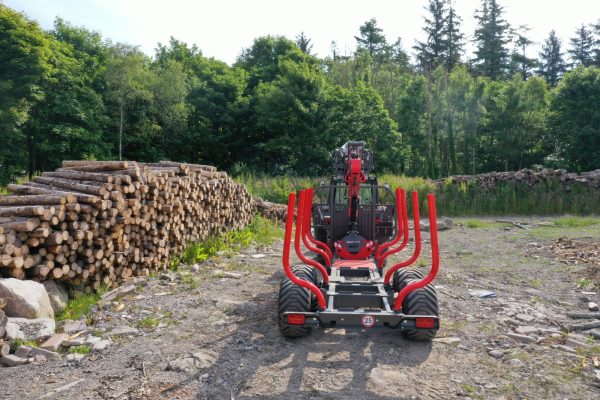

Krpan GP 15 D Forestry Trailer with High-Seat Loader
Features
14.8 t Max Load
4.3 m Bed Length
Extending Bed Length
+,- 40 ° Draw Bar
Hydraulic, optional Pneumatic and Combination Brakes
GD 7,4 K or GD 8,6 K Suitable Cranes
Extending Bolster Section
Hydraulic Wheel Adjust
This high-spec trailer unit from KRPAN provides an excellent option for those looking for a High-Seat option. As you will see from the specifications below, the load capacity of this trailer is ideal for a wide variety of extraction, haulage and yard duties. This unit has an extending rear bolster section and interesting, the rear wheels are on a hydraulic system to allow them to be positioned under the chassis at different points which together allow for adjustments to weight distribution, handling, and manoeuvrability.
This unit can be combined with either the GD 7,4K or the GD 8,6K loaders from KRPAN. These long reach models provide the ideal balance of specifications for a trailer of this size. A choice of loader control options are available covering all typical manual and electric configurations, Please enquire to discuss options in full.
- Technical Features
- Vitli Krpan
- Service
| Load Capacity | 14800 kg |
| Central Beams | 2/200×100×8 mm |
| Loading Length / with Extension | 4325 / (5105) mm |
| Total Length (with Extension) / Width | 6686 (7466) / 2318 mm |
| Weight | 2352 kg |
| Tires Alliance 400/60-15,5; 16 Layers | / |
| Tires BKT 400/60-15,5; 18 Layers | Standard |
| Tires Alliance 480/45-17; 14 Layers | / |
| Tires BKT 500/50-17; 18 Layers | Optional |
| Tires BKT 400/55-22,5; 20 Layers | Optional |
| Tires BKT 550/45-22,5; 20 Layers | Optional |
| Tires BKT or Alliance 600/50-22,5; 18 ply. | Optional |
| No of Frame Steering Cylinders | 2 |
| Drawbar Angle | +,- 40 ° |
| Hydraulic Brakes on All 4 Wheels | Standard |
| Pneumatic Brakes on All 4 Wheels | Optional |
| Combined Brakes on All 4 Wheels (pneumatic + hydraulic) | Optional |
| Combined Brakes on All 4 Wheels (overrun brake + hydraulic) | / |
| Dual-Circuit Hydraulic Brake System | Optional |
| 2WD Inner Drum Drive | Optional BB4/BB5 |
| 4WD Inner Drum Drive | Optional BB4/BB5 |
| Stakes (Pair) | 4 |
| Loading Area Extension | Standard |
| Hydraulic Frame Setting | Standard (800 mm) |
| LED Rear Lights | Standard |
| Wedges | Standard |
| Hand Brake | Standard |
| Additional Stakes | Optional |
| Brushwood Bin | Optional |
| Bale Trailer Platform | Optional |
| Platform | / |
| Hydraulic Support Leg | Optional |
| Towing eye Ø 40 fix | Standard |
| Towing eye Ø 50 fix | Optional |
| Towing eye Ø 50 rotating | Optional |
| Towing eye ball couoling system K 80 | Optional |
| P.T.O. Shaft Walterscheid | Standard |
| Wood Pick, Axe, Chainsaw and Canister Holder | Standard |
| Tool Box | Standard |
| Axle | 80 × 80 mm |
* Weight without Wheels
** BB4 with Tires 400/60-15,5 or 480/45-17 or 500/50-17
*** BB5 with Tires 500/50-17 or 400/55-22,5 or 550/45-22,5 or 600/50-22,5
THE FORESTRY TRAILER CAN BE COMBINED WITH CRANES: GD 7,4 K or GD 8,6 K.
Robust Build Quality
Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.
Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process. KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.
We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
