Krpan RV 45 M Log Deck

Share:

Supporting Information



Features

CS Hydraulic System
CS Control
Reduce handling
Increase output

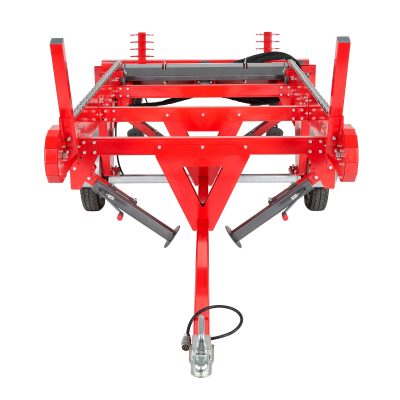

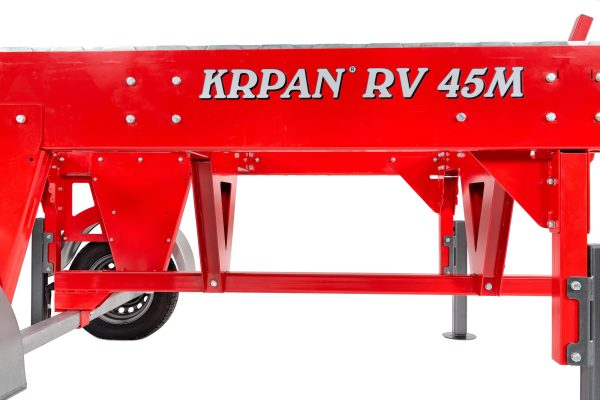

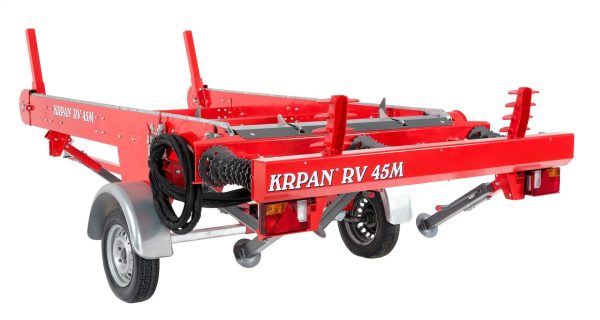

A 3.89 metre long and 2 metre wide powered Firewood Processor Log Deck Infeed Table with cross conveyor.

The table can be loaded with timber using a fork lift, timber loader or a tractor/tele-handler mounted log beak allowing the operator to load a volume of timber in one go. The operator can then move to the processor to cut many logs from this batch, before needing to load the infeed again.
Without a Firewood Processor Log Deck Infeed Table, the handling time required to cut timber in much greater as lengths would need to be loaded onto the infeed belt one at a time. This results in the operator having less time cutting and more time loading which will impact on the output volume.

Technical features

DriveCS Hydraulic System
ControlCS Control
L × W × H3890 × 2005 × 1315 mm
Weight529 kg
Necessary Working Surfacepribl. 9 × 4,5 m
Log Length6 > m
Load Capacity4,2 t / 6 m3
Hydraulically Driven Infeed Rollers3 Piece
Hydraulically Driven Cross Feed Chains2 (Standard), 3 (Optional) Piece

Vitli KRPAN – Robust Build Quality

Vitli KRPAN has established itself within the Forestry and Arb industry as a leading provider of high-quality machinery. Regarded across Europe, and globally for manufacturing high-quality machinery including forestry winches, firewood machinery, forestry trailer cranes and various supporting attachments for handling and processing.

Founded in 1977, KRPAN has developed this distinguished position by developing quality machines with safety, functionality, and quality as a core ethos of their design process.
KRPAN holds numerous international patents, registered designs, and trademarks. The company continues to innovate and improve its machinery to meet the evolving needs of the forestry industry while maintaining its commitment to quality craftsmanship.

Advanced Service Commitment

We have a national network of Regional Service Engineers in well stocked service vans to ensure you get the most from your machinery.
Our fully trained Engineers can carry out a wide range of services from warranty/breakdown support, annual servicing, training and testing to suit your needs.
Learn more about Service & Maintenance


Contact our product specialist Simon Munro directly

01556 612 233 simon@jaspwilson.co.uk
