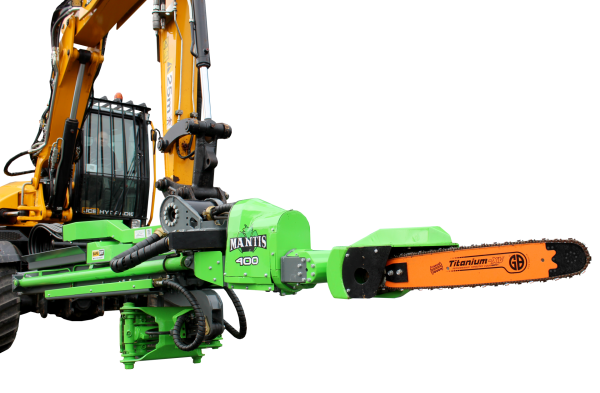

SafeCut Mantis 400 Multi-Axis Pruning Saw and Grapple
Features
40 cm Max Cut Diameter
815 kg Weight
120 cm Grab Max Opening
210 Bar recommended working pressure
8-20+ t recommended base machine size
20-40 l/min recommended flow volume
Arb-Approved Cuts

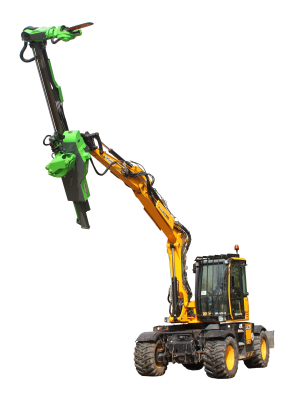

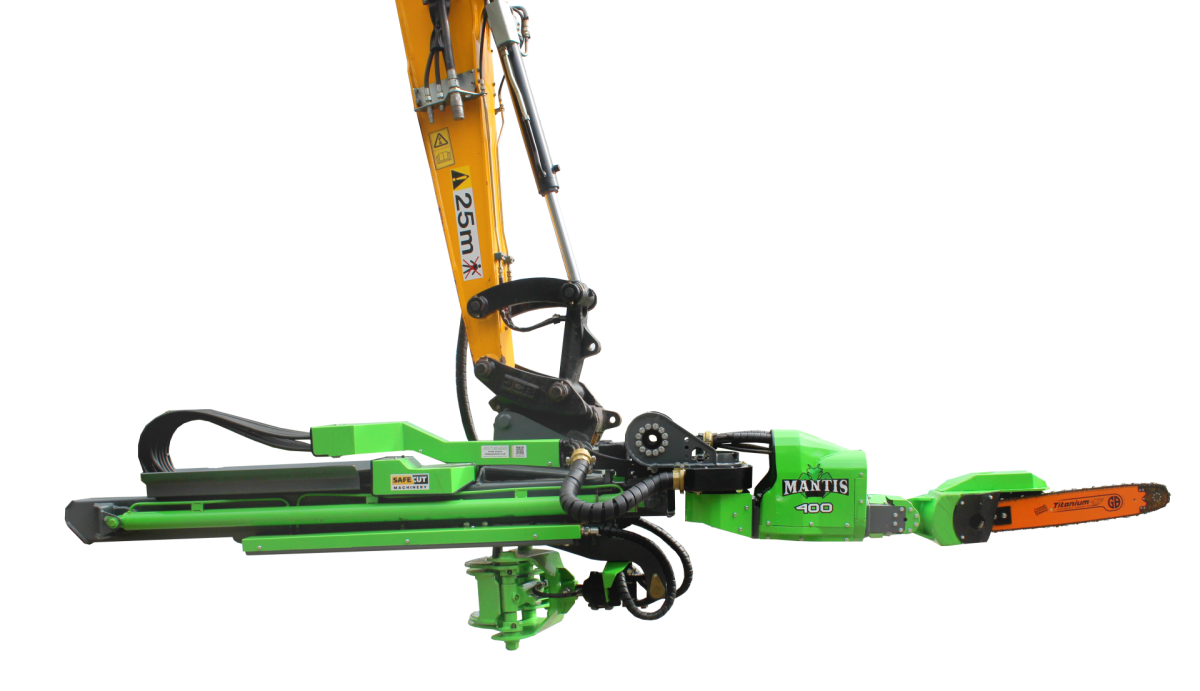

High-Cut Extending Boom
Bar Size: 75cm
Additional Reach (hitch to saw tip): 4.2m (13'8")
Chain Speed: 17m/s
Chain Type: 404 Gauge 0.080" 2.0mm
The Future of Mechanical Arb

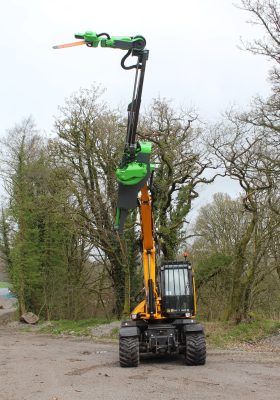

The Mantis 400 delivers the unrivalled ability to mechanically prune standing tree limbs, accurately cut fallen timber & stack or feed timber/brash with a high degree of precision. This is Mechanical ARB like never before, a trained operator can prune trees in accordance to their Arb training, allowing for fast and effective tree work. This model is the ideal attachment for highways management & infrastructure projects, with an extending boom to deliver added reach. This attachment is not to be used to fell trees.
When compared with hand cutting saw options, the Mantis allows trained operators to achieve Arb-Approved pruning cuts & dress cut timber into valuable clean lengths safely from within a cab, without the associated risks!
- More Info
- Supporting Information
When comparing it against other mechanised solutions, this unit allows for a much greater degree of precision in the cuts made. This results in a finish which reflects the skill of the operator, far closer to the work of a hand cutter than other mechanised options. This machine is designed to deliver a safe & highly productive
mechanical solution to the Arb/Forestry sector.
The Mantis 400 is a versatile unit suited to various base machines, please enquire for full details.
It is suited to excavators of between 8 – 20T+. UK designed & manufactured.
An innovation from Jas P Wilson, with patent protection.
